Industrial Thermal Imaging for Equipment Monitoring

Key Takeaways

Industrial thermal imaging has become essential for modern equipment monitoring programs across manufacturing, energy, and utilities sectors.

• OEMs integrating thermal imaging into monitoring platforms can deliver systems that detect equipment problems weeks before failure, transforming reactive maintenance into predictive strategies
• The thermal imaging camera market is projected to grow from $4.12 billion to $6.70 billion by 2032, driven by industrial demand for continuous monitoring
• NFPA 70B 2023 now mandates annual infrared thermography inspections for electrical equipment, creating opportunities for integrated monitoring systems
• Successful programs combine strategic sensor placement, baseline documentation, and analytics integration to maximize ROI

For OEMs developing industrial monitoring platforms, partnering with vertically integrated thermal imaging suppliers accelerates time-to-market while ensuring performance.

Equipment failures cost industrial operations billions annually in unplanned downtime, emergency repairs, and lost production. The difference between a scheduled maintenance stop and a catastrophic breakdown often comes down to visibility. Advanced infrared technology reveals temperature anomalies invisible to the naked eye, giving maintenance teams the data they need to act before problems escalate. The thermal imaging camera market reached $4.12 billion in 2024 and continues expanding as manufacturers recognize that industrial thermal imaging delivers measurable returns through prevented failures.

For OEMs and system integrators building monitoring solutions, understanding thermal imaging best practices has become essential. Your customers operate in environments where equipment uptime directly impacts profitability, safety, and competitive positioning.

What Makes Industrial Thermal Imaging Essential for Modern Operations?

Industrial thermal imaging works on a straightforward principle with powerful implications. Every piece of equipment generates heat during operation, and changes in that heat signature often signal developing problems long before other symptoms appear. An industrial thermal camera captures infrared radiation emitted by equipment surfaces, converting that invisible energy into temperature maps that reveal what visual inspection cannot detect.

When bearings begin to wear, friction increases and generates excess heat. When electrical connections loosen or corrode, resistance rises and creates hot spots. When insulation degrades, temperature distribution patterns change. These thermal signatures provide early warning signals that enable maintenance teams to address problems during planned downtime.

Modern industrial thermal imaging systems operate as continuous monitoring platforms, capturing temperature data around the clock and feeding that information into analytics systems that identify trends and trigger alerts. For OEMs developing monitoring solutions, this evolution creates opportunity. End users increasingly expect integrated systems combining thermal sensing with data analytics, connectivity, and automated alerting.

How Do Industrial Thermal Cameras Detect Problems Before Failure?

Understanding detection capabilities helps OEMs specify appropriate thermal monitoring equipment for different applications. Industrial thermal cameras identify equipment problems through several distinct mechanisms.

Electrical System Monitoring

Electrical connections develop increased resistance as they age, loosen, or corrode. This resistance creates heat that thermal imaging detects as elevated temperatures compared to similar connections under similar loads. An industrial thermal camera monitoring electrical distribution equipment can identify developing problems in circuit breakers, bus connections, transformers, and panel terminations weeks before failure.

The 2023 NFPA 70B standard now requires annual infrared thermography inspections for all electrical equipment, with higher-risk equipment requiring inspections every six months. This regulatory shift creates demand for continuous monitoring systems that help facilities maintain compliance.

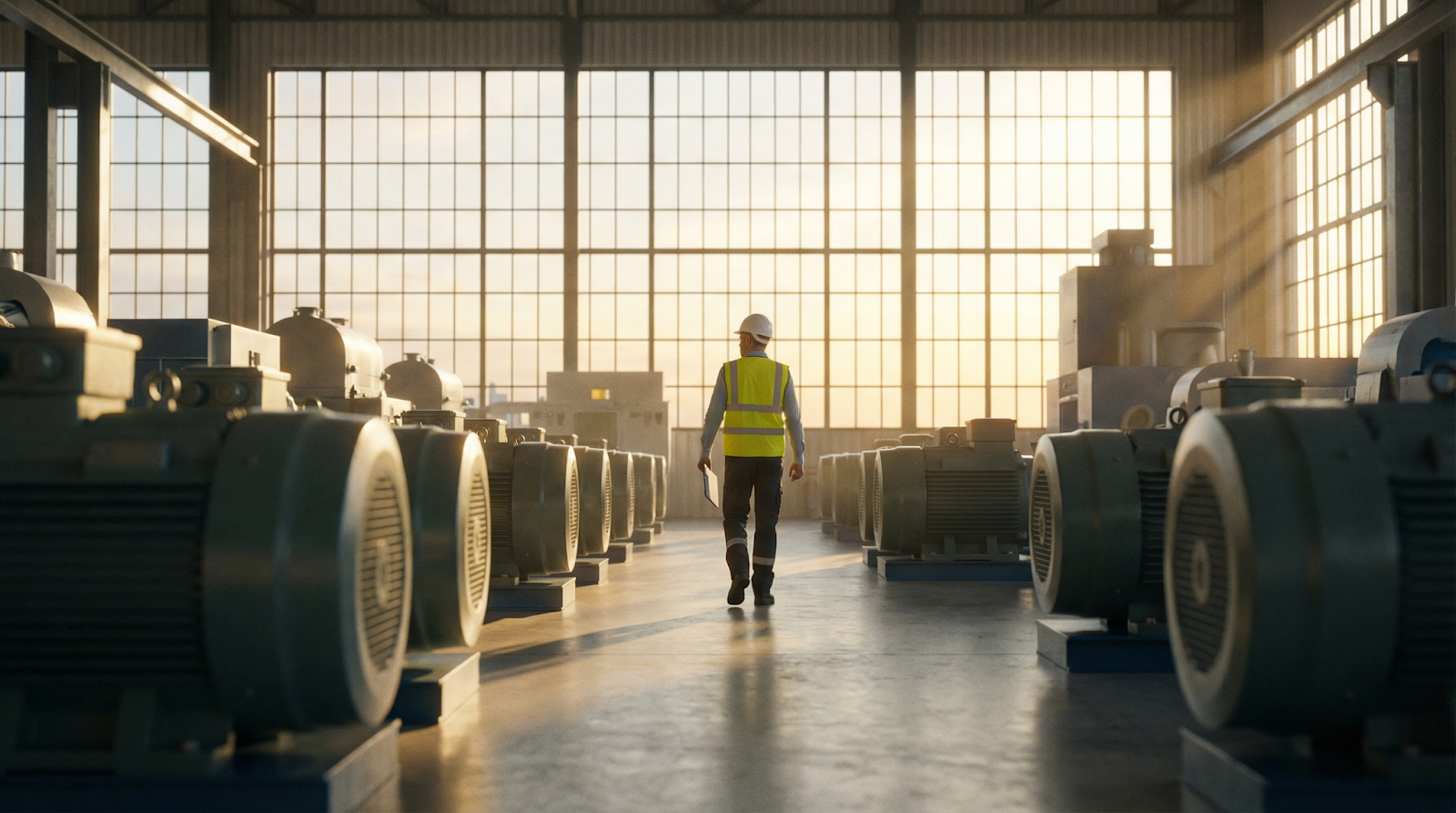

Mechanical Equipment Surveillance

Rotating machinery generates characteristic heat patterns during normal operation. Motors, pumps, compressors, and conveyor systems produce predictable thermal signatures when functioning properly. Deviations from baselines indicate developing problems: bearing wear increases friction and heat, misalignment creates uneven load distribution, and lubrication issues manifest as elevated temperatures.

Process Monitoring Applications

Beyond equipment health, industrial thermal imaging supports process monitoring where temperature control affects product quality or safety. Furnaces, kilns, reaction vessels, and other process equipment benefit from continuous thermal surveillance that maintains optimal operating conditions.

Which Industries Benefit Most from Thermal Monitoring Equipment?

OEMs developing thermal monitoring solutions should understand requirements and use cases across different industrial verticals. Each sector presents unique challenges that influence system design and integration requirements.

Manufacturing Environments

Manufacturing facilities deploy industrial thermal imaging across equipment monitoring, quality control, and process optimization. Production lines depend on reliable operation of motors, drives, conveyors, and automated systems where unexpected failures disrupt schedules and impact profitability.

The manufacturing sector particularly values integration between thermal monitoring and existing plant automation systems. OEMs building solutions for this market need thermal components that communicate through standard industrial protocols and interface with programmable logic controllers and supervisory control systems. Continuous thermal imaging solutions provide visibility into temperature variations, enabling real-time adjustments that maintain quality standards.

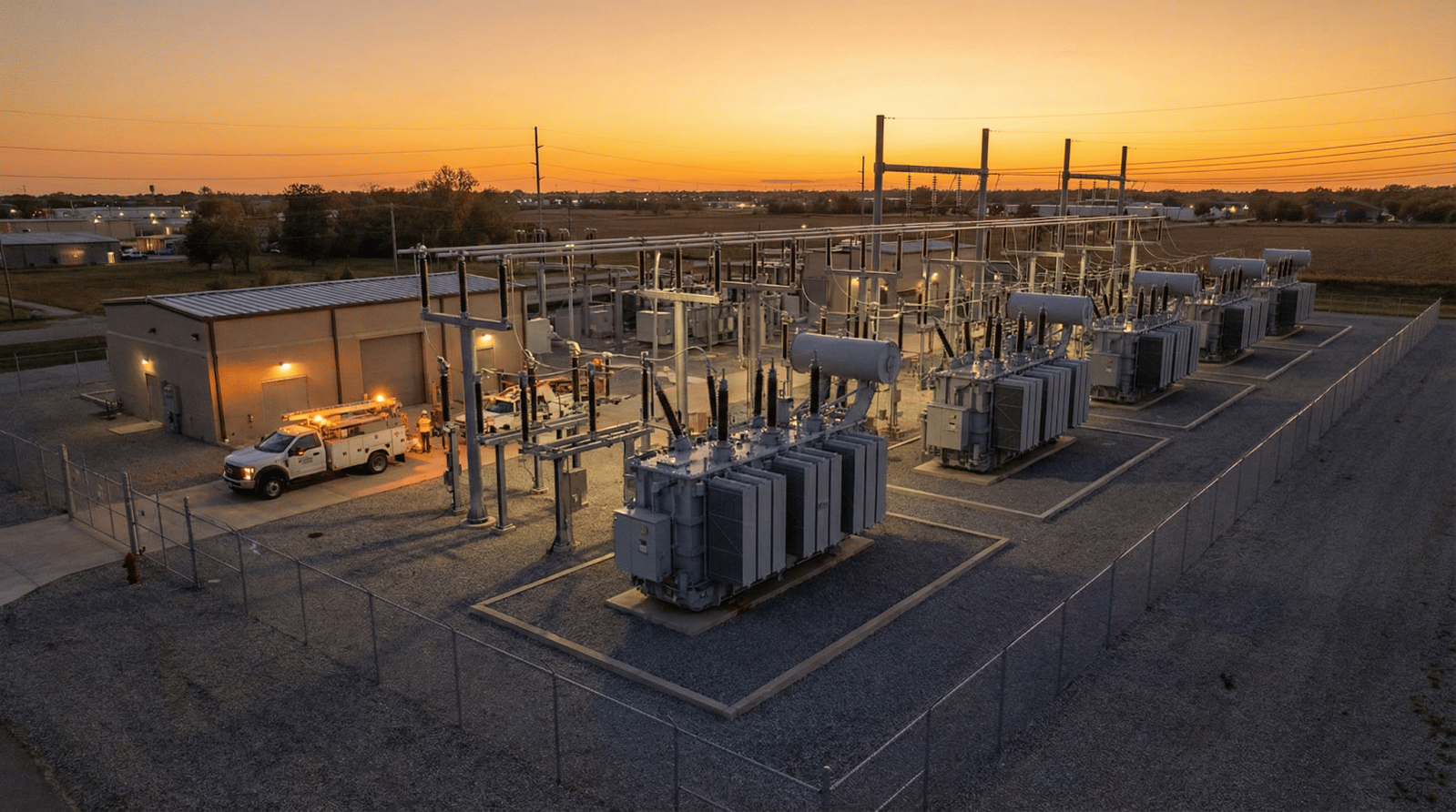

Energy and Utilities Sector

Energy generation and distribution facilities face unique thermal monitoring challenges due to equipment criticality, access constraints, and regulatory requirements. Power plants, substations, and distribution networks benefit from continuous thermal surveillance that identifies developing problems before outages affect customers.

Utilities increasingly deploy thermal monitoring as part of broader asset management strategies. Transformers, switchgear, and connection points throughout electrical infrastructure generate heat signatures that indicate condition and predict remaining useful life. For OEMs serving this sector, ruggedness and reliability take priority. Long-wave infrared systems offer advantages in outdoor installations exposed to weather extremes.

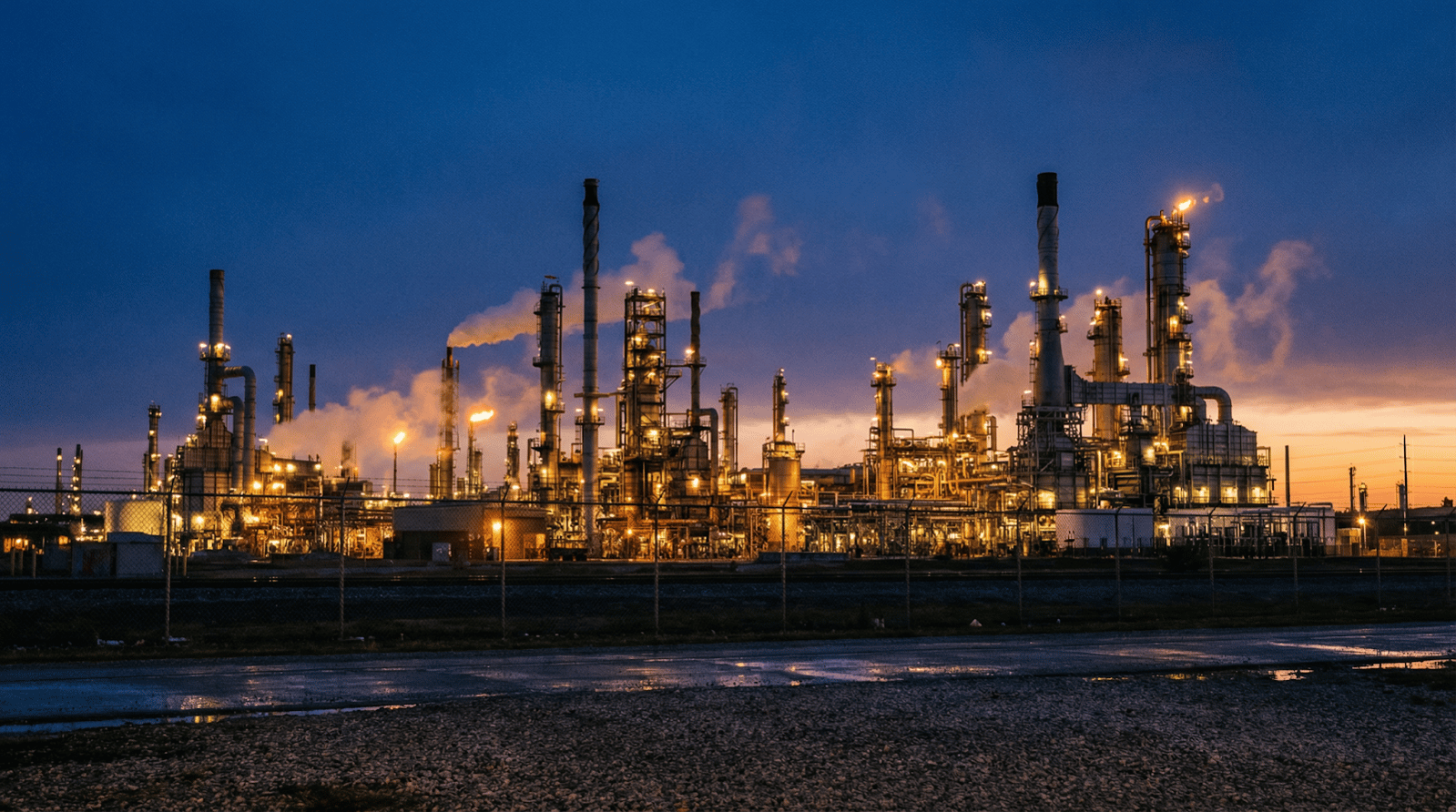

Process Industries

Chemical processing, oil and gas operations, and similar process industries present specialized requirements for thermal monitoring equipment. These environments involve hazardous materials, extreme temperatures, and stringent safety regulations.

Optical gas imaging represents a specialized thermal imaging application particularly relevant to process industries. Cameras tuned to specific infrared wavelengths can visualize gas leaks invisible to standard thermal imaging. Furnace monitoring is another application where industrial solutions designed for harsh environments must withstand extreme heat while delivering reliable imaging through flames and airborne particulates.

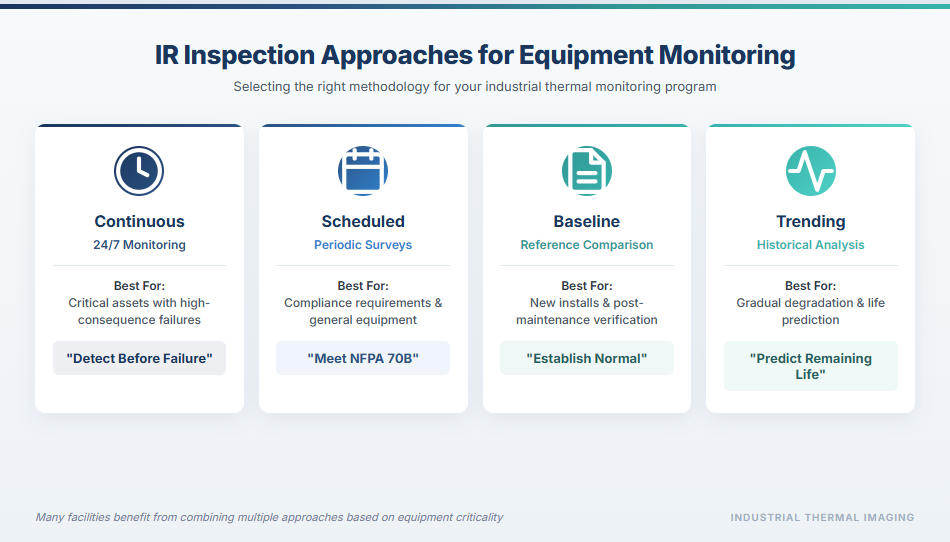

What Are IR Inspection Best Practices for OEMs?

OEMs building thermal monitoring systems should understand the inspection methodologies their end users will employ. This knowledge informs system design decisions and feature development priorities.

Baseline Establishment

Effective thermal monitoring programs begin with baseline documentation. Before identifying anomalies, systems need reference data showing normal operating temperatures for each monitored component under typical load conditions. Baseline data should include operating conditions at the time of capture, including ambient temperature and equipment load level.

Trending and Comparative Analysis

Beyond point-in-time measurements, effective thermal monitoring tracks temperature trends over time. Gradual increases may indicate developing problems requiring attention even if current temperatures remain within acceptable ranges. IR inspection programs that track historical data deliver more predictive value than those focused solely on threshold alerts.

Environmental Considerations

Ambient conditions significantly affect thermal measurement accuracy. Outdoor equipment exposed to solar heating, wind cooling, or precipitation requires different analysis approaches than indoor equipment. Systems designed for IR inspection applications should help users account for reflective surfaces, emissivity variations, and atmospheric conditions.

5 Factors OEMs Should Evaluate When Selecting Thermal Imaging Partners

Building competitive thermal monitoring solutions requires partnering with suppliers who understand both the technology and its industrial applications:

1. Vertical integration depth: Suppliers who control optical design, materials, coatings, and camera assembly can optimize systems for specific applications rather than assembling generic components.


2. Industrial application expertise: Experience with manufacturing, energy, and process industry deployments provides insight into real-world requirements that pure component suppliers may lack.


3. Supply chain reliability: Industrial monitoring systems require consistent component availability over product lifecycles. Partners with secure material sources reduce supply chain risks.


4. Engineering collaboration capability: Complex monitoring systems benefit from collaborative development between OEM engineering teams and thermal imaging specialists.


5. Quality and testing rigor: Industrial environments demand reliable performance under challenging conditions. Partners with comprehensive quality systems ensure your solutions perform consistently.

How Does Predictive Maintenance Reduce Operational Costs?

Understanding the financial impact of predictive maintenance programs helps OEMs communicate value propositions to potential customers. The U.S. Department of Energy's Federal Energy Management Program estimates that effective predictive maintenance programs deliver 30-40% savings compared to reactive maintenance approaches.

These savings come from reduced emergency repair costs, extended equipment life, lower spare parts inventory requirements, and optimized maintenance scheduling. Beyond direct maintenance savings, predictive capabilities reduce unplanned downtime that often costs far more than the repairs themselves.

Energy efficiency represents another benefit of effective thermal monitoring. Equipment operating with worn bearings, degraded insulation, or other developing problems often consumes more energy than properly functioning equipment. For OEMs positioning thermal monitoring solutions, these economic benefits translate into compelling value propositions that justify premium pricing.

Frequently Asked Questions

What temperature sensitivity do industrial thermal cameras need for equipment monitoring?

Most industrial equipment monitoring applications require temperature sensitivity (NETD) of 50mK or better to detect subtle temperature differences indicating developing problems. Higher-sensitivity cameras in the 30-40mK range provide additional capability for early-stage issue detection, particularly in electrical monitoring.

How do OEMs integrate thermal imaging with existing industrial control systems?

Modern industrial thermal cameras support standard communication protocols including GigE Vision and GenICam that interface with PLCs and SCADA systems. Integration complexity varies based on automation requirements, from simple alerts to comprehensive analytics platforms.

What distinguishes continuous monitoring systems from portable inspection cameras?

Continuous monitoring systems are engineered for permanent installation and 24/7 operation with ruggedized construction. Portable inspection cameras prioritize flexibility for periodic surveys. Many operations benefit from combining both approaches.

Build Equipment Monitoring Solutions That Set You Apart

The industrial monitoring landscape rewards OEMs who deliver integrated solutions combining reliable thermal sensing, intelligent analytics, and seamless connectivity. Your customers face increasing pressure to maximize equipment uptime and extend asset life. The monitoring systems you build help them achieve these objectives.

LightPath Technologies brings four decades of infrared imaging expertise to partnerships with OEMs developing industrial monitoring solutions. With vertically integrated manufacturing spanning materials, optics, and complete camera systems, LightPath delivers thermal imaging components and engineering support that help you build monitoring solutions your customers can rely on. Connect with LightPath's team to explore how our capabilities align with your product development objectives.
