Broadband Infrared (BBIR) Solutions

Broadband infrared cameras and optics designed to deliver clear, reliable performance across multiple infrared bands for industrial and research environments.
Talk with an Expert

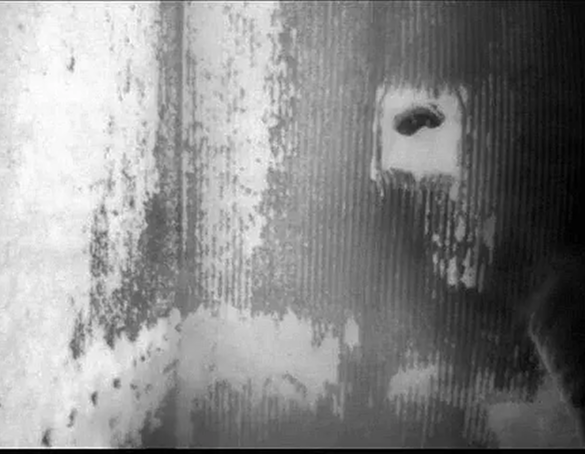

What Is Broadband Infrared?

Our broadband infrared (BBIR) imaging solutions are engineered to operate across multiple infrared wavelength ranges in one system. Instead of being limited to a single band, our BBIR systems capture usable signals across a broader spectrum, providing flexible imaging for complex and changing environments.

This wide response is especially valuable in real-world applications where targets, backgrounds, and emissivity vary. By combining broad spectral coverage with advanced optics and camera design, LightPath BBIR cameras enable more versatile monitoring, testing, and inspection.

What Is Broadband Infrared
LightPath BBIR Solutions img (1)

LightPath BBIR Solutions

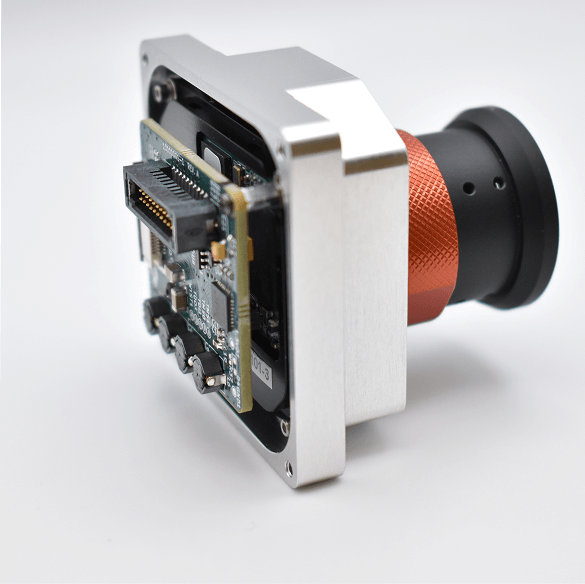

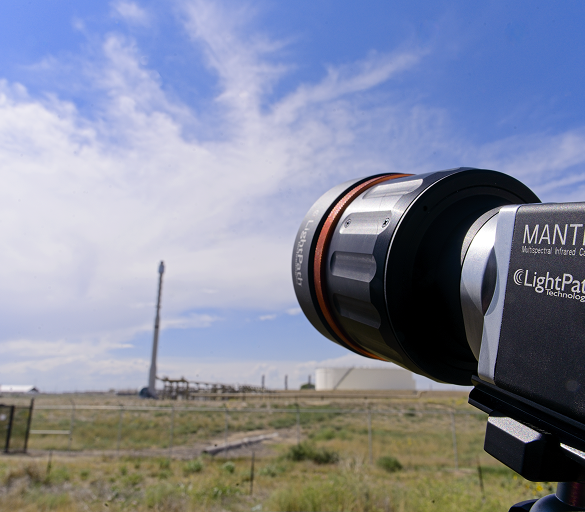

Mantis Uncooled Broadband Camera

See more with dual-band imaging. Mantis captures in both the mid-wave infrared (MWIR) and long-wave infrared (LWIR) simultaneously, delivering unmatched clarity across a broad temperature spectrum. By combining MWIR sensitivity for extremely hot targets with LWIR coverage for subtler thermal signatures, Mantis ensures accurate imaging in environments where detail and differentiation are essential.

  • Dual-band MWIR + LWIR imaging for superior contrast and accuracy
  • Extends high-temperature imaging capability up to 2000°C
  • Compact, low-power design for seamless integration into fixed or mobile platforms
  • Continuous, reliable performance with minimal maintenance

Performance Highlights

camera-icon

Uncooled infrared camera, covering the entire 2-14µm range

VGA icon

VGA (640 x 480) Resolution

Achromatic Lens Design icon

Achromatic Lens Design – does not require re-focusing for different wavelengths

Lens camera

Standard with 19mm, f1.1 lens. Other lenses available upon request

CameraLink icon

CameraLink video output, Other options available upon request (USB 3.0, MIPI, etc.)

weight icon

Low weight, <500 grams

Lenses Orange

Utilized LightPath’s Proprietary Infrared Glasses

High-Temperature Furnace Camera Img

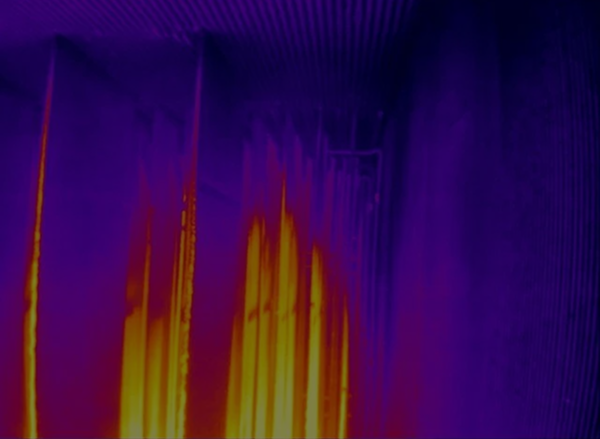

High-Temperature Furnace Camera Modules and Optics

Engineered for extreme heat, our furnace camera modules and optics deliver reliable imaging through flames, glare, and particle-laden atmospheres. Systems are built for continuous operation and serviceability in steel, glass, cement, and chemical plants.

  • Engineered for sustained operation in extreme heat
  • Optics and assemblies withstand flames, glare, and particulates
  • Field-serviceable components designed for safety and uptime
  • Configurable lens and window options for harsh industrial settings

Performance Highlights

usa_flag icon

Made in the U.S.A

Uncooled microbolometer icon

Uncooled microbolometer

Matching borescope optics icon

Paired and Calibrated LightPath Optics

Full Broadband sensitivity icon

Full Broadband sensitivity covering 3-12µm wavelengths

camera-icon

Camera output NTSC\PAL, CameraLink or options for GigE or USB

Customized selectable icon

Customized selectable wavelengths to optimize viewing specific to applications

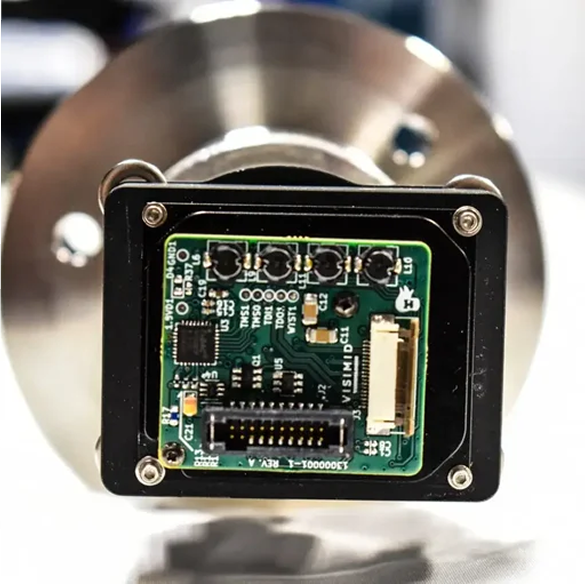

Applications for Our BBIR Solutions

Applications for Our BBIR Solutions Talk with an Expert

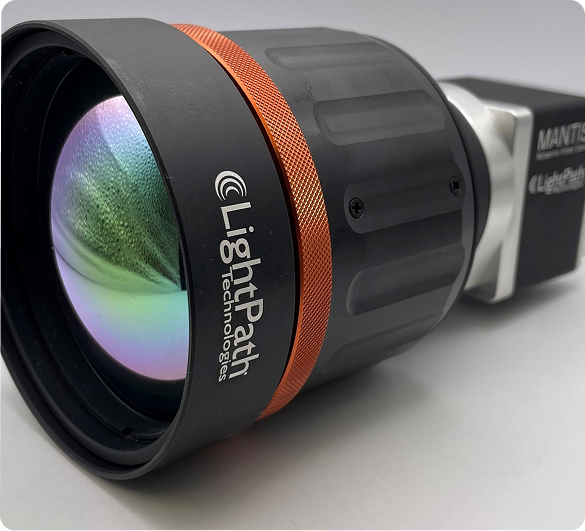

Why Choose LightPath BBIR?

When you choose LightPath, you get a trusted partner that combines proven infrared expertise, integrated design, and long-term support to ensure your BBIR systems deliver lasting value.

Why Choose LightPath BBIR?

Why Choose LightPath BBIR
Bulb Orange icon
Proven Innovation
LightPath brings more than four decades of infrared expertise, delivering broadband solutions trusted in both industrial and defense markets. Our continuous investment in research and engineering ensures customers benefit from cutting-edge performance and reliability
Cameras orange icon
Integrated Optics and Cameras
Our optics and camera systems are engineered together from the start, creating a seamless solution that maximizes clarity and durability. This integration reduces compatibility issues and guarantees real-world performance that stands up to the toughest environments.
Flexible Deployment
Flexible Deployment
From high-temperature furnaces to mobile inspection platforms, LightPath BBIR solutions adapt to diverse applications with a single platform. This flexibility reduces the need for multiple specialized systems and lowers the overall cost of ownership.
Lifecycle Support orange icon
Lifecycle Support
We provide end-to-end support, from design and integration to commissioning and service, so your systems deliver consistent results over time. With tailored maintenance and technical expertise, LightPath ensures your investment continues to perform at its best.

See More. Control More. Choose LightPath.
