Infrared Thermal Camera for Drones: OEM Selection Guide

Key Takeaways

Choosing the right infrared thermal camera for drones determines mission success for surveillance, security, and defense applications.

• OEMs and system integrators must evaluate thermal sensitivity, weight constraints, and power requirements to match cameras with specific platform capabilities
• The cooled versus uncooled decision shapes everything from detection range to flight endurance and total system cost
• Drone thermal surveillance applications continue expanding rapidly, with the market projected to reach $23.5 billion by 2035
• Partnering with vertically integrated manufacturers who control the entire thermal imaging value chain accelerates development timelines and reduces supply chain risk

The global thermal imaging market is experiencing remarkable growth as defense contractors, aerospace companies, and security system manufacturers recognize the operational advantages thermal-equipped drones provide. According to Market Research Future, the thermal drone market reached $7.1 billion in 2024 and is projected to grow to $23.5 billion by 2035, driven primarily by surveillance, inspection, and emergency response applications.

For engineering teams and program managers responsible for developing drone platforms, selecting an infrared thermal camera for drones involves decisions that extend far beyond comparing resolution specifications. The camera you choose affects detection capabilities, flight endurance, integration complexity, and ultimately whether your platform delivers the performance your customers require. This guide walks through the key considerations that separate successful integrations from costly development setbacks.

Why Are OEMs Investing in Infrared Thermal Camera for Drones?

Thermal imaging mounted on unmanned aerial platforms provides capabilities that ground-based and manned aircraft systems cannot match at comparable cost. The combination of aerial mobility, reduced operational expense, and advanced sensor technology creates compelling value propositions across multiple market segments. Grand View Research reports that the broader drone market reached $73 billion in 2024 and is projected to hit $163.6 billion by 2030, with enhanced imaging sensors identified as a primary growth driver.

Defense and homeland security applications represent the largest investment category. Border surveillance operations benefit from drone thermal imaging camera systems that detect human heat signatures through darkness, light vegetation, and challenging weather conditions. Counter-drone systems rely on thermal detection to identify and track small unmanned aircraft that may evade radar. Intelligence, surveillance, and reconnaissance missions leverage the persistent monitoring capability that drone thermal surveillance provides without the cost and complexity of manned aircraft operations.

Industrial and commercial applications are expanding equally fast. Energy companies deploy thermal-equipped drones for pipeline monitoring and leak detection. Utilities inspect transmission lines for hotspots that indicate impending failures. Public safety agencies use thermal drones for search and rescue operations where locating missing persons quickly can mean the difference between successful recovery and tragedy. Each application places different demands on the imaging system, making the selection process critical for aerospace and defense solution providers.

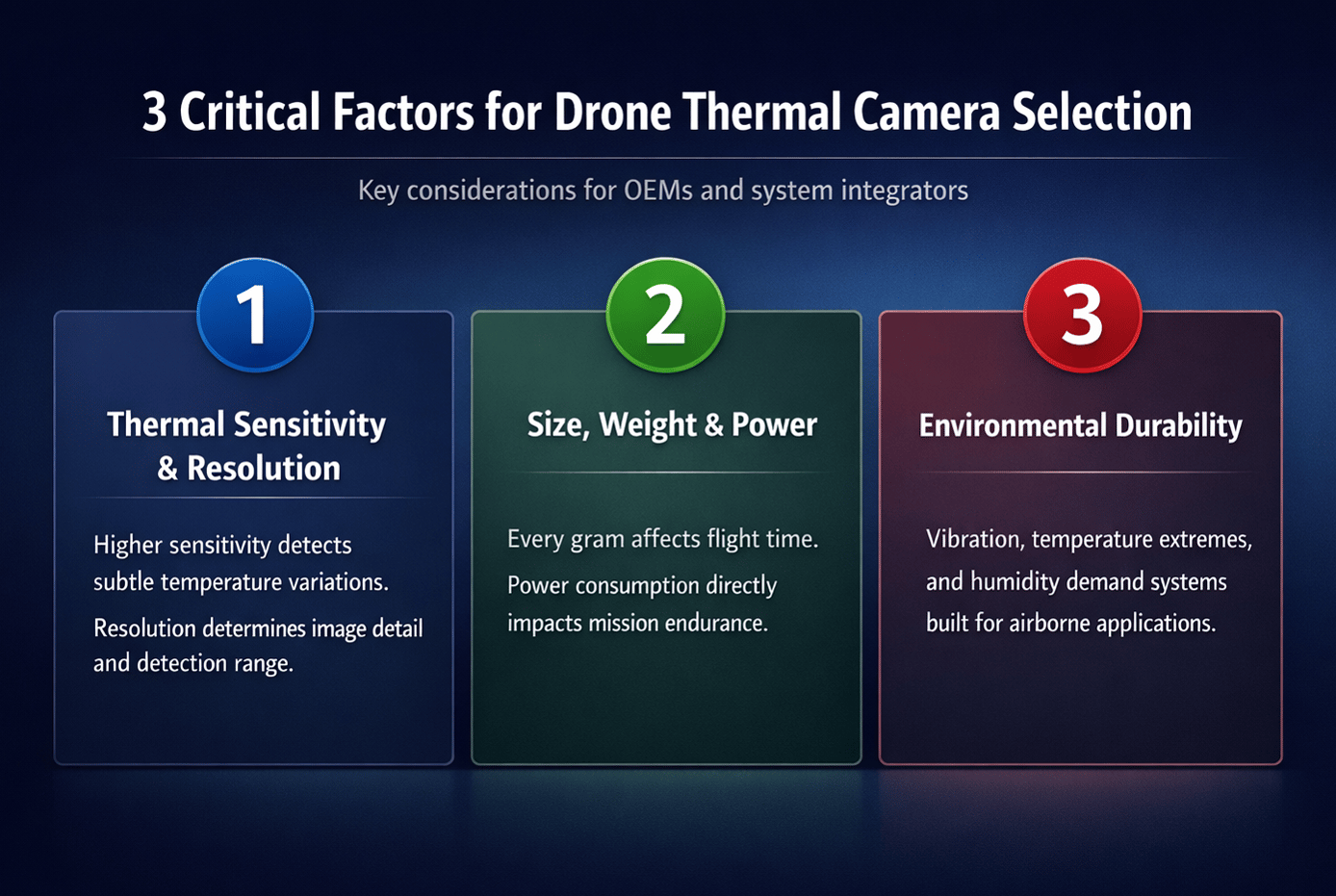

What Should You Consider When Selecting an Infrared Thermal Camera for Drones?

Several interconnected factors determine whether a thermal surveillance camera will deliver the performance your application requires. Understanding these relationships helps you avoid specification mismatches that compromise mission effectiveness.

Thermal Sensitivity and Resolution

Thermal sensitivity, measured as Noise Equivalent Temperature Difference, indicates the smallest temperature variation the sensor can detect. Higher sensitivity enables detection of subtle thermal signatures and improves performance in challenging conditions where temperature contrasts are minimal.

For drone thermal surveillance applications requiring detection of human subjects against varied backgrounds, systems with sensitivity below 50 mK provide reliable performance across operational scenarios.

Resolution determines image detail and affects detection range, though it's not the only factor. Focal length and lens quality also significantly impact how far a system can effectively detect and identify targets.

Higher-resolution sensors capture more information but increase data bandwidth requirements and system cost. The resolution needed depends on your operational parameters. A 640x512 sensor provides substantially more detail than 320x256 alternatives, enabling target identification at greater distances or improved situational awareness in complex environments.

Size, Weight, and Power Constraints

Every gram of camera payload reduces available flight time or forces compromises elsewhere in your platform design. A drone infrared sensor system that delivers impressive specifications but weighs several kilograms may prove impractical for small and medium platforms where payload capacity is limited. Power consumption directly impacts mission endurance since thermal cameras draw continuous power throughout flight operations.

Successful integrators evaluate the complete system weight including camera, optics, gimbal, and associated electronics rather than focusing solely on the imaging core. Power budget analysis should account for both steady-state consumption and any peak demands during startup or intensive processing operations.

Environmental Durability

Thermal cameras on drone platforms experience conditions that would quickly degrade laboratory equipment. Vibration, temperature extremes, humidity, and potential exposure to dust and precipitation all affect long-term reliability. Systems designed specifically for airborne applications incorporate features that maintain performance despite these environmental stressors.

Military specifications provide useful benchmarks for environmental performance even in commercial applications. Systems qualified to MIL-STD-810 standards demonstrate resilience to temperature cycling, shock, vibration, and environmental exposure that predict reliable field performance.

Cooled vs Uncooled Systems: Which Fits Your Platform?

The fundamental architecture decision for any infrared thermal camera for drones centers on detector technology. Both cooled and uncooled systems offer distinct advantages that align with different operational profiles.

Cooled thermal cameras use cryogenic cooling to reduce detector noise, achieving superior sensitivity and enabling long-range detection critical for certain defense applications. The trade-off involves increased weight, power consumption, mechanical complexity, and maintenance requirements. Cooler life limitations also affect total cost of ownership over extended deployments.

Uncooled systems based on microbolometer technology operate at ambient temperature, eliminating cooling requirements. This approach reduces weight and power consumption dramatically while providing sensitivity adequate for most surveillance, inspection, and monitoring applications. Modern uncooled sensors have narrowed the performance gap with cooled alternatives substantially, making them the practical choice for many drone and UAV payload applications where extended flight time matters.

What Applications Drive Drone Thermal Surveillance Demand?

Understanding how different sectors deploy thermal surveillance camera systems helps clarify which specifications matter most for your target market. The following applications represent major demand drivers shaping current procurement decisions.

Defense and Security Operations

• Border and perimeter surveillance requiring persistent monitoring capability
• Counter-UAS detection, tracking, and engagement support
• Intelligence, surveillance, and reconnaissance missions in contested environments
• Target acquisition and battle damage assessment
• Maritime domain awareness and vessel tracking

Public Safety and Emergency Response

• Search and rescue operations locating missing persons through thermal signatures
• Firefighting support including hotspot identification and fire progression monitoring
• Law enforcement tactical operations and suspect tracking
• Disaster response and damage assessment following natural events

Industrial and Infrastructure Monitoring

• Electrical transmission line inspection for thermal anomalies
• Pipeline surveillance for leak detection and security monitoring
• Solar installation efficiency assessment and fault detection
• Building envelope inspection identifying insulation deficiencies

Each application category places different priorities on drone infrared sensor specifications. Defense applications often prioritize maximum detection range and may accept the weight and power penalties of cooled systems. Public safety operations typically value extended flight time and rapid deployment, favoring lighter uncooled alternatives. Industrial inspection frequently requires radiometric measurement capability for quantitative temperature assessment.

How Do Integration Requirements Affect Camera Selection?

Successful drone thermal imaging camera integration extends beyond mounting hardware to a platform. Data interfaces, gimbal compatibility, software integration, and regulatory compliance all influence which cameras fit your development timeline and technical architecture.

Interface and Data Considerations

Thermal video streams require substantial bandwidth, particularly at higher resolutions and frame rates. Interface options including USB, Camera Link, SDI, and Ethernet each offer different bandwidth capabilities and integration complexity. Verify that your platform's data architecture can accommodate the camera's output without bottlenecks that degrade real-time performance.

Radiometric data capture adds another consideration. Many thermal camera systems for tactical applications provide temperature measurement capability in still images but not continuous video. Applications requiring real-time temperature trending should confirm full-motion radiometric support before committing to system architecture.

Gimbal and Stabilization

Effective thermal imaging from moving platforms demands stabilization that holds the sensor steady despite drone motion, vibration, and wind disturbances. Gimbal selection must accommodate camera weight while providing the stabilization performance necessary for clear imagery at operational ranges.

The combined camera and gimbal package becomes the relevant specification for platform integration. A lightweight camera paired with an oversized gimbal may actually create worse weight and balance characteristics than a heavier camera designed for its specific stabilization system.

Supply Chain and Compliance Factors

Export control regulations including ITAR and EAR restrictions affect which thermal cameras you can incorporate into products destined for international markets. Systems containing controlled technologies may limit your addressable market substantially or require licensing procedures that extend program timelines. North America currently accounts for over 39% of global drone market revenue, making domestic manufacturing and supply chain transparency increasingly valuable for programs serving defense and government customers.

Supply chain security has become increasingly important as geopolitical tensions affect component availability. Manufacturers with domestic production capabilities and vertically integrated operations provide greater certainty that component shortages will not compromise your program schedule. Understanding where critical components originate helps assess long-term procurement risk.

Frequently Asked Questions

What resolution should I specify for an infrared thermal camera for drones? Resolution requirements depend on your detection range and target identification needs. A 640x512 sensor provides sufficient detail for most surveillance and inspection applications, enabling target detection at distances appropriate for typical drone operations. Higher resolution sensors offer advantages for long-range applications but increase system cost and data bandwidth requirements. Evaluate your specific operational scenarios to determine the resolution that delivers required capability without over-specifying costly features.

How does a drone infrared sensor differ from handheld or fixed thermal cameras? Drone-mounted sensors face unique constraints including strict weight and power limits, continuous vibration, wide temperature variations during flight, and limited data transmission bandwidth. Purpose-built drone infrared sensor systems incorporate lighter components, more efficient power management, and robust environmental protection that general-purpose thermal cameras may lack. Integration-ready designs also provide standardized interfaces and gimbal compatibility that simplify platform development.

What affects detection range in drone thermal surveillance applications? Detection range depends on multiple interacting factors including sensor resolution, thermal sensitivity, optical focal length, atmospheric conditions, and target thermal contrast against background. Cooled systems generally achieve longer detection ranges than uncooled alternatives due to superior sensitivity. However, atmospheric absorption, humidity, and weather conditions can limit performance regardless of sensor capability. System-level optical design and lens quality affect range as significantly as detector specifications alone.

Start Building Your Competitive Edge

Selecting the right infrared thermal camera for drones determines whether your platform meets customer expectations and competitive positioning goals. The evaluation process requires balancing performance specifications against integration constraints, cost targets, and supply chain considerations that may not appear on specification sheets.

Organizations that successfully navigate these decisions typically partner with manufacturers offering integrated thermal imaging capabilities rather than component-only suppliers. Vertically integrated partners who control materials, optics, and camera assemblies provide faster customization, more reliable supply chains, and engineering support that accelerates development timelines.

LightPath Technologies delivers thermal imaging components and camera systems engineered specifically for OEM integration into demanding drone and unmanned system applications. From proprietary optical materials to fully assembled cameras, our vertically integrated approach ensures your program benefits from proven performance and responsive engineering partnership. Connect with our team to discuss your specific requirements and discover how the right thermal imaging partner can differentiate your platform.
